Technical data

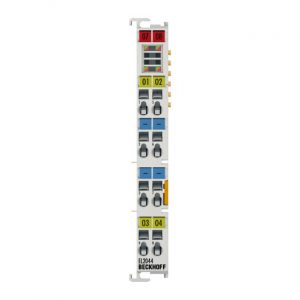

EL2044, ES2044
Connection technology
2-wire
Number of outputs
4
Nominal voltage
24 V DC (-15 %/+20 %)
Load type
ohmic, inductive, lamp load up to max. 24 W
Max. output current
max. 2 A (short-circuit proof) per channel, with diagnostic
Output stage
push (high-side switch)
Short-circuit current
typ.
