Technical data

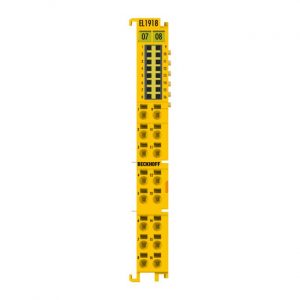

EL1918
Connection technology
1-/2-wire
Specification
link unit between safe input and output signals
Number of inputs
8
Protocol
TwinSAFE/Safety over EtherCAT
Fault response time
? watchdog time (parameterizable)
Current consumption power contacts
see documentation
Current consumption E-bus
typ. 165 mA
Installation position
horizontal
Safety standard
EN ISO 13849-1:2015 (Cat. 4, PL e) and EN 61508:2010 (SIL 3)
Weight
approx. 50 g
IP protection class
IP 20
