Technical data

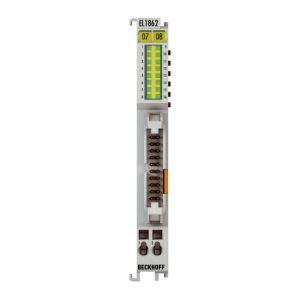

EL1862-0010
Connection technology
flat-ribbon cable
Specification
ground switching “0”: 18…30 V DC, “1”: 0…7 V DC, typ. 3 mA input current
Number of inputs
16
Nominal voltage
24 V DC (-15 %/+20 %)
Rated current
max. 1 A per connection pin
“0” signal voltage
18…30 V
“1” signal voltage
0…7 V
Input current
typ. 3 mA (EN 61131-2, type 3)
Input filter
typ. 3.0 ms
Distributed clocks
–
Current consumption power contacts
typ. 45 mA from the 24 V supply (no power contacts)
Current consumption E-bus
typ. 100 mA
Electrical isolation
500 V (E-bus/field potential)
Bit width in the process image
16 inputs
Configuration
no address or configuration setting
Special features
–
Weight
approx. 60 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE, UL, ATEX
Ex marking
II 3 G Ex nA IIC T4 Gc
