Technical data

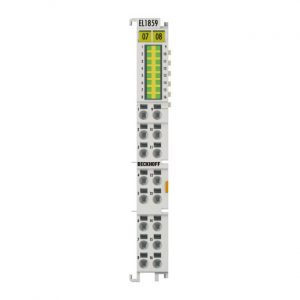

EL1859
Connection technology
1-wire
Specification
EN 61131-2, type 1/3
Number of channels
8 inputs + 8 outputs
Nominal voltage
24 V DC (-15 %/+20 %)
“0” signal voltage
-3…+5 V (EN 61131-2, type 1/3)
“1” signal voltage
11…30 V (EN 61131-2, type 3)
Input current
typ. 3 mA (EN 61131-2, type 3)
Input filter
typ. 3.0 ms
Distributed clocks
–
Load type
ohmic, inductive, lamp load
Max. output current
0.5 A per channel
Reverse voltage protection
yes
Breaking energy
