Technical data

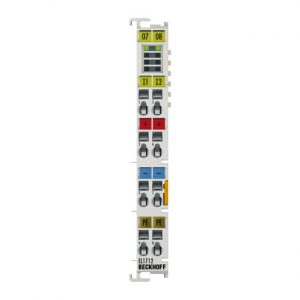

EL1712, ES1712
Connection technology
4-wire
Number of inputs
2
Nominal voltage
120 V AC/DC
“0” signal voltage
0…40 V
“1” signal voltage
79…140 V
Input current
> 3 mA, typ. 6 mA
Input filter
typ. 10 ms
Distributed clocks
–
Switching times
10 ms
Current consumption power contacts
–
Current consumption E-bus
typ. 55 mA
Electrical isolation
500 V (E-bus/mains voltage); 3750 V AC, 1 min.
Configuration
no address or configuration setting
Special features
also suitable for 120 V DC
Weight
approx. 60 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Pluggable wiring
for all ESxxxx terminals
