Technical data

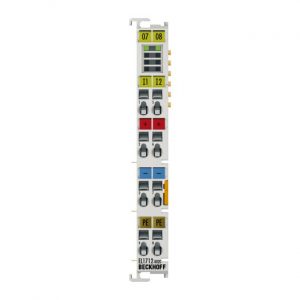

EL1712-0020, ES1712-0020
Connection technology
4-wire
Number of inputs
2
Nominal voltage
120 V DC
“0” signal voltage
0…40 V
“1” signal voltage
80…140 V
Input current
typ. 3.0 mA
Input filter
typ. 3.0 ms
Distributed clocks
–
Current consumption power contacts
load-dependent
Current consumption E-bus
typ. 90 mA
Electrical isolation
500 V (E-bus/field potential)
Special features
direct connection of DC actuators
Weight
approx. 60 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Pluggable wiring
for all ESxxxx terminals
