Technical data

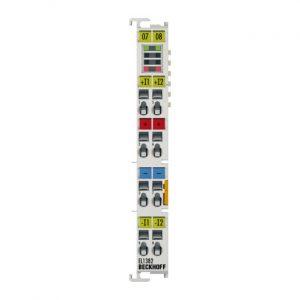

EL1382, ES1382
Connection technology
2-wire
Specification
thermistor PTC
Number of inputs
2
Nominal voltage
24 V (-15 %/+20 %)
“0” signal voltage
? 1.5 k?
“1” signal voltage
? 3 k?
Signal “0“ release
? 1.5 k?
Signal “1“ excess temperature
? 3 k?
Sensor voltage
? 5 V
Diagnostics
open-circuit monitoring > 12 k?, short-circuit diagnostic
