Technical data

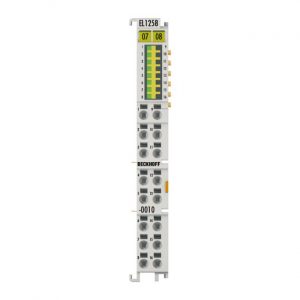

EL1258-0010
Connection technology
2-wire
Specification
ground switching “0”: 18…30 V DC, “1”: 0…7 V DC, typ. 3 mA input current
Number of inputs
8
Nominal voltage
24 V DC (-15 %/+20 %)
“0” signal voltage
18…30 V
“1” signal voltage
0…7 V
Input current
typ. 3.0 mA
Input filter
typ.
