Technical data

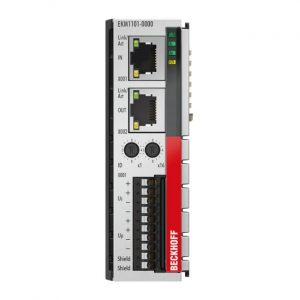

EKM1101
Task within EtherCAT system
coupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT networks, with identity verification
Data transfer medium
Ethernet/EtherCAT cable (min. Cat. 5), shielded
Distance between stations
max. 100 m (100BASE-TX)
Number of EtherCAT Terminals
up to 65,534
Type/number of peripheral signals
max. 4.2 GB addressable I/O points
Number of configurable IDs
256
Protocol
EtherCAT
Delay
approx. 1 µs
Data transfer rates
100 Mbit/s
Bus interface
2 x RJ45
Power supply
24 V DC (-15 %/+20 %)
Current consumption E-bus
–
Current consumption from US
50 mA + (? E-bus current/4)
Current consumption from UP
50 mA + load
Current supply E-bus
2000 mA
Power contacts
max. 24 V DC/max. 2 A
Special features
electrically isolated output voltages, reverse polarity protection, diagnostics of supply and output voltages
Electrical isolation
500 V (power contact/supply voltage/EtherCAT)
Weight
approx. 450 g
Operating/storage temperature
0…+55 °C/-40…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE, UL, ATEX, IECEx, cFMus
Ex marking
cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc
