Technical data

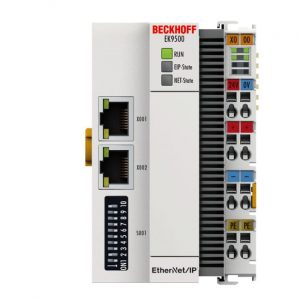

EK9500
Task within EtherCAT system
coupling of standard digital and analog EtherCAT Terminals and EtherCAT Box modules to EtherNet/IP networks
Number of EtherCAT Terminals
depending on the process data size
Type/number of peripheral signals
depending on the process data size
Protocol
EtherNet/IP
Data transfer rates
100 Mbit/s
Configuration
not required
Bus interface
2 x RJ45 (switched)
Power supply
24 V DC (-15 %/+20 %)
Input current
typ. 120 mA + (total E-bus current)/4
Current consumption E-bus
up to 2 A
Power contacts
max. 24 V DC/max. 10 A
Electrical isolation
500 V (power contact/supply voltage/Ethernet)
Dimensions (W x H x D)
64 mm x 100 mm x 73 mm
Operating/storage temperature
-25…+60 °C/-40…+85 °C
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
Protect. class/installation pos.
IP 20/see documentation
Approvals/markings
CE, UL, ATEX
Ex marking
II 3 G Ex nA IIC T4 Gc
