Technical data

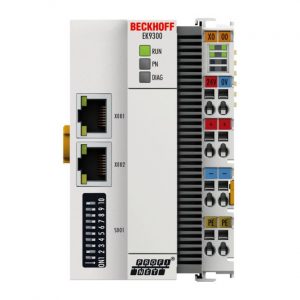

EK9300
Task within EtherCAT system
coupling of standard digital and analog EtherCAT Terminals and EtherCAT Box modules to PROFINET RT networks
Number of EtherCAT Terminals
depending on the process data size
Type/number of peripheral signals
depending on the process data size
Protocol
PROFINET RT
Data transfer rates
100 Mbit/s
Configuration
not required
Bus interface
2 x RJ45 (switched)
Power supply
24 V DC (-15 %/+20 %)
Input current
typ. 120 mA + (total E-bus current)/4
Current consumption E-bus
up to 2 A
Power contacts
max. 24 V DC/max. 10 A
Electrical isolation
500 V (power contact/supply voltage/Ethernet)
Dimensions (W x H x D)
64 mm x 100 mm x 73 mm
Operating/storage temperature
-25…+60 °C/-40…+85 °C
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
Protect. class/installation pos.
IP 20/see documentation
Approvals/markings
CE, UL, ATEX, IECEx, cFMus
Ex marking
ATEX: II 3 G Ex nA IIC T4 Gc IECEx: Ex nA IIC T4 Gc Ex tc IIIC T135 °C Dc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc
