Technical data

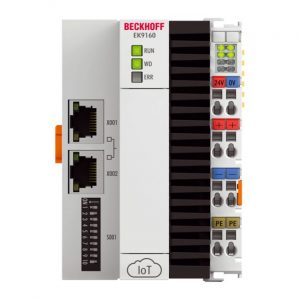

EK9160
Task within EtherCAT system
coupling of standard digital and analog EtherCAT Terminals to the IoT world
Protocol
MQTT, OPC UA
Flash memory
slot for microSD card, 512 MB included (expandable)
Data transfer rates
100 Mbit/s
Configuration
via integrated web server
Bus interface
2 x RJ45 (switched)
Power supply
24 V DC (-15 %/+20 %)
Input current
150 mA + (total E-bus current)/4
Current supply E-bus
2000 mA
Power contacts
max. 24 V DC/max. 10 A
Electrical isolation
500 V (power contact/supply voltage/Ethernet)
Dimensions (W x H x D)
71 mm x 100 mm x 73 mm
Operating/storage temperature
-25…+60 °C/-40…+85 °C
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
Protect. class/installation pos.
IP 20/see documentation
Approvals/markings
CE, UL
