Technical data

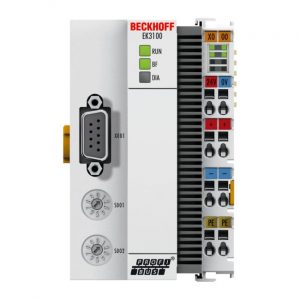

EK3100
Task within EtherCAT system
coupling of standard digital and analog EtherCAT Terminals and EtherCAT Box modules to PROFIBUS networks
Number of EtherCAT Terminals
depending on the process data size
Type/number of peripheral signals
depending on the process data size
Protocol
PROFIBUS DP
Data transfer rates
up to 12 Mbaud (automatic detection)
Configuration
not required
Bus interface
1 x D-sub 9-pin socket with shielding
Power supply
24 V DC (-15 %/+20 %)
Input current
typ. 120 mA + (total E-bus current)/4
Current consumption E-bus
up to 2 A
Power contacts
max. 24 V DC/max. 10 A
Electrical isolation
500 V (power contact/supply voltage/Ethernet)
Dimensions (W x H x D)
64 mm x 100 mm x 73 mm
Operating/storage temperature
-25…+60 °C/-40…+85 °C
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE, UL, ATEX
Ex marking
II 3 G Ex nA IIC T4 Gc
