Technical data

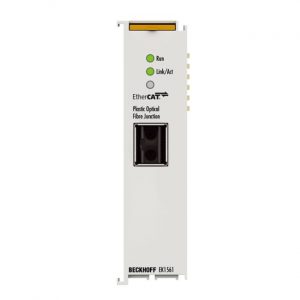

EK1561
Task within EtherCAT system
coupling of EtherCAT junctions via POF
Data transfer medium
plastic optical fibre (POF)
Distance between stations
max. 50 m (100BASE-FX)
Number of EtherCAT Terminals
–
Type/number of peripheral signals
–
Protocol
EtherCAT
Delay
approx. 1 µs
Data transfer rates
100 Mbit/s
Configuration
not required
Bus interface
1 x ZS1090-0008 POF plug
Power supply
from E-bus
Current consumption 24 V DC
–
Current consumption E-bus
typ. 200 mA
Weight
approx. 65 g
Operating/storage temperature
-25…+60 °C/-40…+85 °C
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE, UL
