Technical data

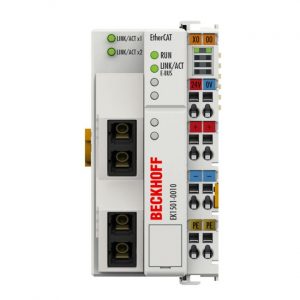

EK1501-0010
Task within EtherCAT system
coupling of EtherCAT Terminals (ELxxxx) to 100BASE-FX EtherCAT networks, with identity verification
Data transfer medium
singlemode glass fibre 9/125 µm (SM)
Distance between stations
max. 20,000 m (100BASE-FX)
Number of EtherCAT Terminals
up to 65,534
Type/number of peripheral signals
max. 4.2 GB addressable I/O points
Number of configurable IDs
4096
Protocol
EtherCAT
Delay
approx. 1 µs
Data transfer rates
100 Mbit/s
Bus interface
2 x SC Duplex
Power supply
24 V DC (-15 %/+20 %)
Current consumption from US
150 mA + (? E-bus current/4)
Current consumption from UP
load
Current supply E-bus
2000 mA
Power contacts
max. 24 V DC/max. 10 A
Electrical isolation
500 V (power contact/supply voltage/Ethernet)
Weight
approx. 190 g
Operating/storage temperature
-25…+60 °C/-40…+85 °C
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE, UL, ATEX
Ex marking
II 3 G Ex nA IIC T4 Gc
