Technical data

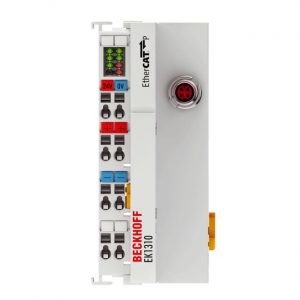

EK1310
Task within EtherCAT system
conversion of the E-bus signals to 100BASE-TX Ethernet for feed-in in the EtherCAT P network
Data transfer medium
EtherCAT P cable, shielded, to 100BASE-TX EtherCAT P networks
Bus interface
1 x M8 socket, shielded, screw type, P-coded
Power supply
external feed-in: 24 V DC for US and UP
Total current
max. 3 A per US and UP
Current consumption from US
typ. 3 mA
Current consumption from UP
typ. 3 mA
Current rating per port
max. 3 A per US and UP
Current consumption E-bus
typ. 110 mA
Electrical isolation
500 V (supply voltage Us/supply voltage Up/EtherCAT)
Operating/storage temperature
0…+55 °C/-25…+85 °C
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE, UL
