Technical data

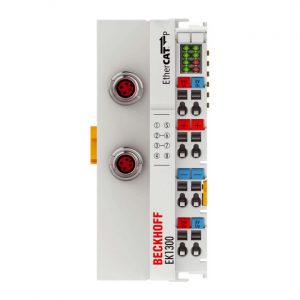

EK1300
Task within EtherCAT system
coupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT P networks
Data transfer medium
EtherCAT P cable, shielded, to 100BASE-TX EtherCAT P networks
Bus interface
2 x M8 socket, shielded, screw type, P-coded
Power supply
from EtherCAT P (24 V DC for US and UP)
Total current
from EtherCAT P, max. 3 A per US and UP
Current consumption from US
40 mA + (? E-bus current/4)
Current consumption from UP
typ. 4 mA
Current supply E-bus
2000 mA
Current rating per port
max. 3 A per US and UP
Electrical isolation
500 V (power contact/supply voltage/Ethernet)
Operating/storage temperature
0…+55 °C/-25…+85 °C
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE, UL
