Technical data

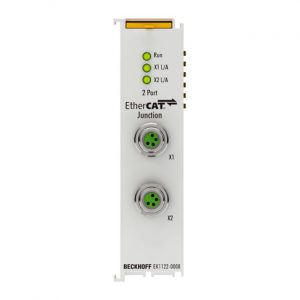

EK1122-0008
Task within EtherCAT system
coupling of EtherCAT junctions
Data transfer medium
Ethernet/EtherCAT cable (min. Cat. 5), shielded
Distance between stations
100 m (100BASE-TX)
Protocol
EtherCAT
Delay
approx. 1 µs
Data transfer rates
100 Mbit/s
Configuration
not required
Bus interface
2 x M8, shielded, screw type
Power supply
from E-bus
Current consumption
typ. 220 mA
Weight
approx. 65 g
Operating/storage temperature
-25…+60 °C/-40…+85 °C
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE, UL, ATEX, IECEx, cFMus
Ex marking
ATEX: II 3 G Ex nA IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc
