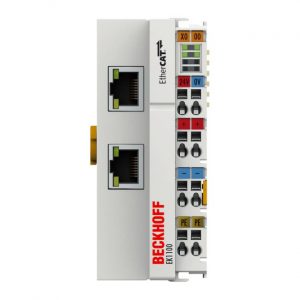

EK1100 | EtherCAT Coupler

SKU: EK1100
Hãng sản xuất: Beckhoff
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: CO/CQ, hóa đơn VAT

Mã sản phẩm: EK1100 Danh mục: , ,
Liên hệ báo giá

Technical data
EK1100

Task within EtherCAT system
coupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT networks

Data transfer medium
Ethernet/EtherCAT cable (min. Cat. 5), shielded

Distance between stations
max. 100 m (100BASE-TX)

Number of EtherCAT Terminals
up to 65,534

Protocol
EtherCAT

Delay
approx. 1 µs

Data transfer rates
100 Mbit/s

Bus interface
2 x RJ45

Power supply
24 V DC (-15 %/+20 %)

Current consumption from US
70 mA + (? E-bus current/4)

Current consumption from UP
load

Current supply E-bus
2000 mA

Power contacts
max. 24 V DC/max. 10 A

Electrical isolation
500 V (power contact/supply voltage/Ethernet)

Operating/storage temperature
-25…+60 °C/-40…+85 °C

EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4

Relative humidity
95 %, no condensation

Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27

Protect. class/installation pos.
IP 20/variable

Approvals/markings
CE, UL, ATEX, GL, IECEx, cFMus

Ex marking
ATEX: II 3 G Ex nA IIC T4 Gc IECEx: Ex nA IIC T4 Gc Ex tc IIIC T135 °C Dc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc
