Technical data

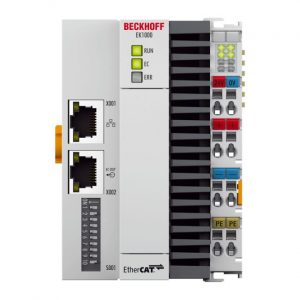

EK1000
Task within EtherCAT system
coupling of EtherCAT Terminals (ELxxxx) to TSN networks
Networks
mode 1: for unmanaged switch networks; mode 2: for TSN networks
Data transfer medium
Ethernet/EtherCAT cable (min. Cat. 5), shielded
Distance between stations
max. 100 m (100BASE-TX)
Number of EtherCAT Terminals
up to 65,534
Type/number of peripheral signals
–
Protocol
EtherCAT Open Mode
Delay
–
Data transfer rates
100 Mbit/s
Configuration
not required
Bus interface
X001 (RJ45) = 100 Mbit/s Ethernet (TSN); X002 (RJ45) = 100 Mbit/s EtherCAT (EK1100 e.g.)
Power supply
24 V DC (-15 %/+20 %)
Current consumption from US
–
Current consumption from UP
–
Current supply E-bus
2000 mA
Power contacts
max. 24 V DC/max. 10 A
Electrical isolation
500 V (power contact/supply voltage/Ethernet)
Operating/storage temperature
0…+55 °C/-25…+85 °C
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE
