Technical data

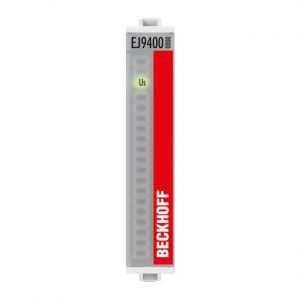

EJ9400
Technology
power supply module for E-bus
Short-circuit proof
–
Input voltage
24 V DC (-15 %/+20 %)
Input current
approx. 10 mA + (E-bus/6.25)
Max. output current
2.5 A
Current consumption E-bus
–
Current consumption from US
10 mA + (? E-bus current/7.2)
Electrical isolation
–
Diagnostics in the process image
–
Weight
approx. 30 g
Operating/storage temperature
-25…+60 °C/-40…+85 °C
Relative humidity
95 %, no condensation
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
Protect. class/installation pos.
IP 20/see documentation
Approvals/markings
CE, UL
