Technical data

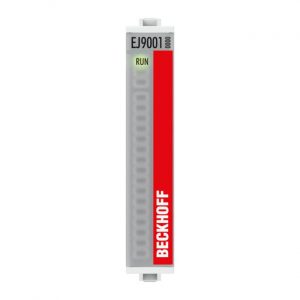

EJ9001
Technology
placeholder module
Current consumption E-bus
typ. 60 mA
Nominal voltage
–
Electrical isolation
500 V (E-bus/field potential)
Diagnostics
–
Special features
placeholder module for subsequent functional extensions
Weight
approx. 30 g
Operating/storage temperature
-25…+60 °C/-40…+85 °C
Relative humidity
95 %, no condensation
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
Protect. class/installation pos.
IP 20/see documentation
Approvals/markings
CE, UL
