Technical data

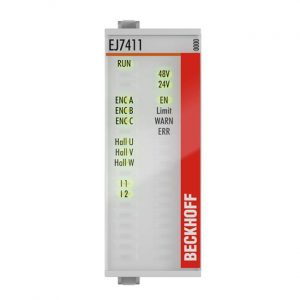

EJ7411
Technology
compact drive technology
Connection method
direct motor connection + feedback
Number of inputs
2 x end position, 1 x encoder, 3 x Hall effect sensor
Load type
DC motors
Number of channels
1
Number of outputs
1 x BLDC motor, 1 x motor brake, 1 x sensor supply, 1 x encoder supply
Supply voltage electronics
24 V DC (via distribution board)
Supply voltage power
8…48 V DC (via distribution board)
Output current
4.5 A (Irms)
PWM clock frequency
16 kHz
Rotating field frequency
0…599 Hz
Current consumption power contacts
typ. 50 mA + holding current motor brake
Current consumption E-bus
typ. 120 mA
Distributed clocks
yes
Special features
compact and system-integrated
Electrical isolation
500 V (E-bus/field potential)
Weight
approx. 50 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
Protect. class/installation pos.
IP 20/see documentation
Pluggable wiring
–
Approvals/markings
CE
