Technical data

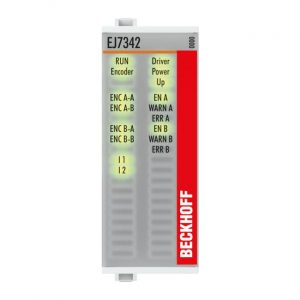

EJ7342
Technology
compact drive technology
Connection method
direct motor connection
Number of inputs
1 x end position, 1 x encoder per channel
Load type
DC brush motor, inductive
Number of channels
2
Number of outputs
1 x DC motor per channel
Supply voltage electronics
24 V DC (via distribution board)
Supply voltage power
8…48 V DC (via distribution board)
Output current
max. 3.5 A per channel
PWM clock frequency
32 kHz with 180° phase shift each
Duty factor
0…100 % (voltage-controlled)
Resolution
max. 10 bit current, 16 bit speed
Encoder input signal
5…24 V DC, typ. 5 mA, single-ended
Input frequency
max. 400,000 increments/s (with 4-fold evaluation)
Auxiliary power current
typ. 45 mA (via distribution board)
Current consumption E-bus
typ. 160 mA
Distributed clocks
yes
Special features
travel distance control, encoder input
Electrical isolation
500 V (E-bus/field potential)
Weight
approx. 50 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
Protect. class/installation pos.
IP 20/see documentation
Approvals/markings
CE, UL
