Technical data

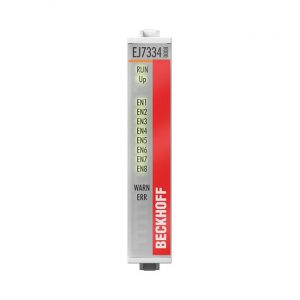

EJ7334-0008
Technology
compact drive technology
Connection method
direct motor connection
Load type
DC brush motors, inductive > 1 mH
Number of channels
4/8
Number of outputs
1 x DC motor per channel
Supply voltage electronics
24 V DC (via distribution board)
Supply voltage power
8…24 V DC (via distribution board)
Output current
? 8.0 A, max. 3.0 A per channel (0…+40 °C) ? 6.0 A, max. 3.0 A per channel (0…+45 °C)
PWM clock frequency
16 kHz
Duty factor
0…98 % (voltage-controlled)
Resolution
max. 10 bit current, 16 bit speed
Auxiliary power current
typ. 20 mA + motor current
Current consumption E-bus
typ. 150 mA
Distributed clocks
–
Special features
up to eight motors can be operated unidirectionally
Electrical isolation
500 V (E-bus/field potential)
Weight
approx. 30 g
Operating/storage temperature
0…+45 °C/-25…+85 °C
Relative humidity
95 %, no condensation
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
Protect. class/installation pos.
IP 20/see documentation
Approvals/markings
CE
