Technical data

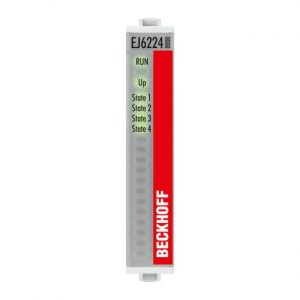

EJ6224
Technology
IO-Link
Connection method
3-wire
Specification version
IO-Link V1.1
IO-Link interfaces
4
Supply voltage electronics
24 V DC (via distribution board)
Cable length
max. 20 m
Data transfer rates
4.8 kbaud, 38.4 kbaud and 230.4 kbaud
Supply current for devices
500 mA per device
Current consumption E-bus
typ. 110 mA
Special features
IO-Link configuration tool integrated in TwinCAT: IO-Link sensor scan, comfortable sensor parameter handling, integrated online search for sensor description files
Electrical isolation
500 V (E-bus/field potential)
Weight
approx. 30 g
Operating/storage temperature
-25…+60 °C/-40…+85 °C
Relative humidity
95 %, no condensation
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
Protect. class/installation pos.
IP 20/see documentation
Approvals/markings
CE, UL
