Technical data

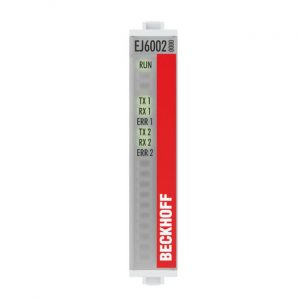

EJ6002
Technology
serial interface
Interfaces
individual selectable from RS232, RS485, RS422
Data transfer channels
2
Data transfer rates
300…256,000 baud (individual free configurable)
Data buffer
864 bytes receive buffer, 128 bytes transmit buffer
Current consumption E-bus
190 mA
Electrical isolation
500 V (E-bus/field potential)
Weight
approx. 30 g
Operating/storage temperature
-25…+60 °C/-40…+85 °C
Relative humidity
95 %, no condensation
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
Protect. class/installation pos.
IP 20/see documentation
Approvals/markings
CE, UL
