Technical data

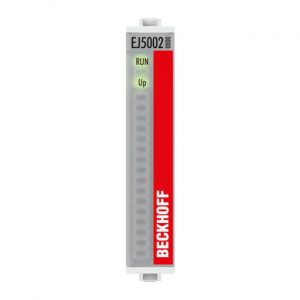

EJ5002
Technology
SSI encoder interface
Number of channels
2
Encoder connection
D+, D-, Cl+, Cl-
Supply voltage electronics
24 V DC (via distribution board)
Current consumption
typ. 20 mA + load
Current consumption E-bus
typ. 120 mA
Data transfer rates
variable up to 1 MHz, 250 kHz default
Serial input
variable up to 32 bit, 24 bit default
Data direction
read
Distributed clocks
yes
Signal input (data)
difference signal (RS422)
Signal output (pulse)
difference signal (RS422)
Electrical isolation
500 V (E-bus/field potential)
Special features
adjustable baud rate, coding and data length, activatable power fail bit
Weight
approx. 30 g
Operating/storage temperature
-25…+60 °C/-40…+85 °C
Relative humidity
95 %, no condensation
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
Protect. class/installation pos.
IP 20/see documentation
Approvals/markings
CE, UL
