Technical data

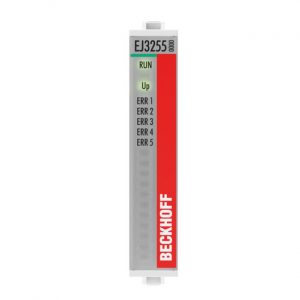

EJ3255
Technology
Potentiometer
Number of inputs
5
Power supply
via UP contacts
Auxiliary power current
UP contacts: dependent on the potentiometers, max. 125 mA
Technology
ratiometric potentiometer evaluation with supply, 3-wire
Distributed clocks
yes
Feed voltage potentiometer
typ. 10 V ±10 %
Internal resistance
>> 100 k? to wiper connection
Input filter limit frequency
typ. -3 dB at 3 kHz and potentiometer 50 k?
Sensor types
potentiometer 300 ?…50 k?
Output current
max. 0.3 A total supply current for the potentiometers
Wiring fail indication
yes
Conversion time
typ. 300…700 µs, dependent on settings, default setting: approx. 500 µs (5 channels, filter deactivated)
Resolution
16 bit (incl. sign)
Measuring error
