Technical data

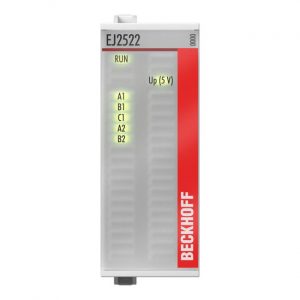

EJ2522
Technology
pulse train (frequency output)
Connection technology
pulse train (frequency output)
Power supply
24 V (-15 %/+20 %)
Number of outputs
2 channel A/B, 1 channel A/B/C (4 differential outputs)
Input specification
–
Output specification
RS422, differential, 50 mA, min. 120 ? load
Load type
ohmic, min. 220 ?
Distributed clocks
yes
Max. output current
RS422 specification, 50 mA
Short-circuit current
short-circuit proof
Base frequency
0…4 MHz, 50 kHz default
Resolution
16 bit (incl. sign, scaled via the set frequency range)
Step size
min. 10 ns (internal)
Auxiliary power current
typ. 50 mA (load dependent)
Current consumption E-bus
typ. 180 mA
Electrical isolation
500 V (E-bus/field potential)
Special features
ABC incremental encoder simulation with connection to TwinCAT NC
Weight
approx. 50 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
Protection class
IP 20
Protect. class/installation pos.
IP 20/see documentation
Approvals/markings
CE
