Technical data

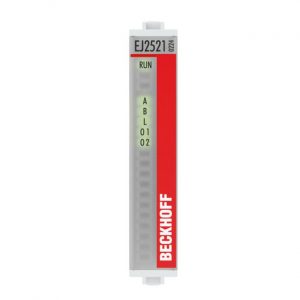

EJ2521-0224
Connection technology
pulse train (frequency output)
Power supply
via the E-bus
Number of outputs
1 channel (2 outputs A, B)
Capture/compare input/output
1/2
Input specification
24 V DC
Output specification
5…24 V DC, external supply
Load type
ohmic, inductive
Distributed clocks
yes
Max. output current
1 A
Short-circuit current
–
Base frequency
0…500 kHz, 50 kHz default
Resolution
max. 15 bit (16 bit + sign)
Current consumption E-bus
typ. 135 mA
Electrical isolation
500 V (E-bus/field potential)
Special features
different modes, ramp function, travel distance control
Weight
approx. 30 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
Protect. class/installation pos.
IP 20/see documentation
Approvals/markings
CE, UL
