Technical data

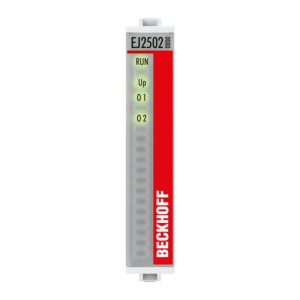

EJ2502
Technology
PWM
Power supply
via the E-bus
Number of outputs
2
Rated load voltage
24 V DC (-15 %/+20 %)
Load type
ohmic, inductive, lamp load
Distributed clocks
–
Max. output current
0.5 A (short-circuit proof) per channel
Short-circuit current
typ. 750 ns, TOFF: > 500 ns
Auxiliary power current
typ. 10 mA + load
Current consumption E-bus
typ. 110 mA
Electrical isolation
500 V (E-bus/field potential)
Special features
separate frequency can be set for each channel
Weight
approx. 30 g
Operating/storage temperature
-25…+60 °C/-40…+85 °C
Relative humidity
95 %, no condensation
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
Protect. class/installation pos.
IP 20/see documentation
Approvals/markings
CE, UL
