Technical data

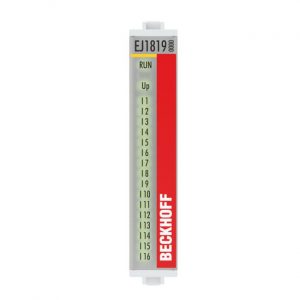

EJ1819
Specification
EN 61131-2, type 1/3
Technology
Filter 10 µs
Number of inputs
16
Nominal voltage
24 V DC (-15 %/+20 %)
“0” signal voltage
-3…+5 V (EN 61131-2, type 1/3)
“1” signal voltage
11…30 V (EN 61131-2, type 3)
Input current
typ. 3 mA (EN 61131-2, type 3)
Input filter
typ. 10 µs
Distributed clocks
–
Current consumption E-bus
typ. 80 mA
Electrical isolation
500 V (E-bus/field potential)
Special features
standard input module with high number of channels (filter 10 µs)
Weight
approx. 30 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
Protect. class/installation pos.
IP 20/see documentation
Approvals/markings
CE, UL
