Technical data

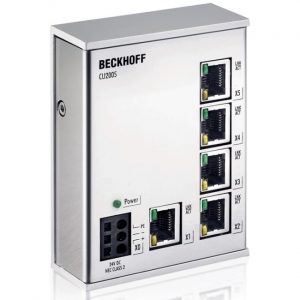

CU2005
Bus system
all Ethernet (IEEE 802.3)-based protocols, store and forward switching mode, unmanaged
Number of Ethernet ports
5
Ethernet interface
10BASE-T/100BASE-TX Ethernet, RJ45
Cable length
up to 100 m twisted pair
Data transfer rates
10/100 MBit/s, IEEE 802.3u auto-negotiation, half or full duplex, automatic settings
Hardware diagnosis
2 LEDs per channel, activity, link
Power supply
24 (18…30) V DC, 3-pin connection (+, -, PE)
Current consumption
typ. 90 mA
Weight
approx. 260 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE, UL
