Technical data

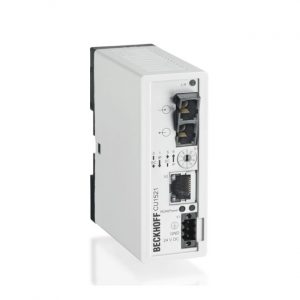

CU1521-0000
CU1521-0010
Task within EtherCAT system
media transition from RJ45 copper physics to multimode fibre optic and back
media transition from RJ45 copper physics to singlemode fibre optic and back
Data transfer medium
multimode glass fibre 50/125 µm (MM); Ethernet/EtherCAT cable (min. Cat. 5), shielded
singlemode glass fibre 9/125 µm (SM); Ethernet/EtherCAT cable (min. Cat. 5), shielded
Bus interface
1 x SC Duplex; 1 x RJ45
Distance between stations
max. 2000 m (100BASE-FX); max. 100 m (100BASE-TX)
max. 20,000 m (100BASE-FX); max. 100 m (100BASE-TX)
Protocol
EtherCAT
Delay
approx. 1 µs
Data transfer rates
100 Mbit/s
Configuration
per rotary switch
Power supply
24 (18…30) V DC, 3-pin connection (+, -, PE)
Dimensions (W x H x D)
34 mm x 98 mm x 77 mm
Operating/storage temperature
-25…+60 °C/-40…+85 °C
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE, UL
