Technical data

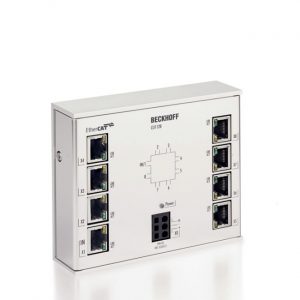

CU1128
Task within EtherCAT system
coupling of EtherCAT junctions
Data transfer medium
Ethernet/EtherCAT cable (min. Cat. 5), shielded
Bus interface
8 x RJ45
Distance between stations
max. 100 m (100BASE-TX)
Protocol
EtherCAT
Delay
approx. 1 µs per port
Data transfer rates
100 Mbit/s
Configuration
not required
Power supply
24 (18…30) V DC, 3-pin connection (+, -, PE)
Current consumption 24 V DC
typ. 185 mA
Dimensions (W x H x D)
122 mm x 100 mm x 38 mm
Operating/storage temperature
-25…+60 °C/-40…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE, UL
