Technical data

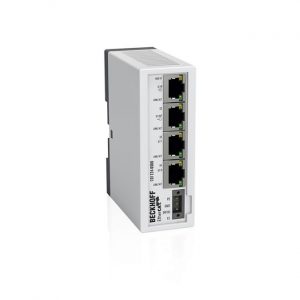

CU1124
Task within EtherCAT system
coupling of EtherCAT junctions
Data transfer medium
Ethernet/EtherCAT cable (min. Cat. 5), shielded
Bus interface
4 x RJ45
Distance between stations
max. 100 m (100BASE-TX)
Protocol
EtherCAT
Delay
approx. 1 µs per port
Data transfer rates
100 Mbit/s
Configuration
not required
Power supply
24 V (-15 %/+20 %), 3-pin connection (+, -, PE)
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE
