Technical data

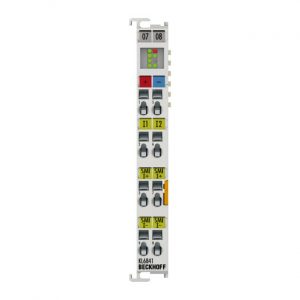

KL6841
Technology
SMI
Number of channels
1
Number of slaves
16
Data transfer standard
SMI
Data transfer rates
2400 baud
Topology
line topology
Cable length
max. 200 m
Current consumption K-bus
typ. 55 mA
Electrical isolation
500 V (K-bus/SMI-bus)
Bit width in the process image
input/output: 24 bytes
Configuration
via the Bus Coupler or the controller
Input voltage
24 V DC (-15 %/+20 %)
Insulation voltage
SMI bus/K-bus: 1,500 V DC, SMI bus/power contacts: 1,500 V AC
SMI system
230 V AC
Special features
2 digital inputs for simplified commissioning; TwinCAT library: TwinCAT PLC SMI
Weight
approx. 80 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Approvals/markings
CE
