Technical data

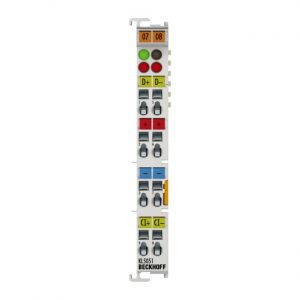

KL5051, KS5051
Technology
SSI encoder interface
Number of channels
1 encoder interface
Encoder connection
binary input: D+, D-, binary output: Cl+, Cl-
Power supply
5 V DC via power contacts (KL9505)
Current consumption
typ. 85 mA without encoder
Current consumption power contacts
no data
Encoder supply
5 V DC
Data transfer rates
1 MHz
Serial input
24 bit width (variable)
Data direction
bidirectional
Signal output
difference signal (RS422)
Signal input
difference signal (RS422)
Electrical isolation
500 V (K-bus/field potential)
Current consumption K-bus
typ. 75 mA
Bit width in the process image
input/output: 2 x 16 bit data, 2 x 8 bit control/status
Special features
bidirectional
Weight
approx. 80 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Pluggable wiring
for all KSxxxx Bus Terminals
Approvals/markings
CE, UL, ATEX
Ex marking
II 3 G Ex nA IIC T4 Gc
