Technical data

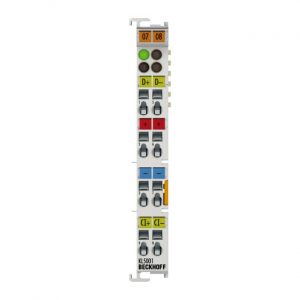

KL5001, KS5001
Technology
SSI encoder interface
Number of channels
1 encoder interface
Encoder connection
binary input: D+, D-, binary output: Cl+, Cl-
Power supply
24 V DC via power contacts
Current consumption
typ. 20 mA without encoder
Current consumption power contacts
typ. 20 mA + load
Encoder supply
24 V DC via power contacts
Data transfer rates
variable up to 1 MHz, 250 kHz default
Serial input
24 bit width (variable)
Data direction
read
Signal output
difference signal (RS422)
Signal input
difference signal (RS422)
Electrical isolation
500 V (K-bus/field potential)
Current consumption K-bus
typ. 25 mA
Bit width in the process image
input: 1 x 32 bit data (1 x 8 bit control/status optional)
Weight
approx. 60 g
Operating/storage temperature
-25…+60 °C/-40…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Pluggable wiring
for all KSxxxx Bus Terminals
Approvals/markings
CE, UL, ATEX
Ex marking
II 3 G Ex nA IIC T4 Gc
