Technical data

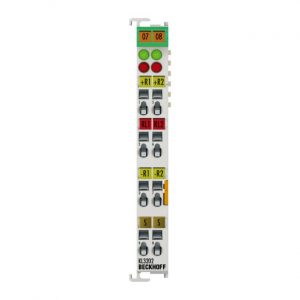

KL3202, KS3202
Number of inputs
2
Power supply
via the K-bus
Technology
2-/3-wire
Sensor types
Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000 resistance measurement (e.g. potentiometer, 10 ?…1.2/5 k?)
Connection method
2- or 3-wire (default: 3-wire)
Measuring range
-200…+850 °C (Pt sensors); -60…+250 °C (Ni sensors)
Resolution
0.1 °C per digit
Conversion time
~ 250 ms
Measuring current
typ. 0.5 mA
Measuring error
