Application
Special feature
Free from silicone; Gold-plated contacts; Drag chain suitability
Application
hygienic and wet areas in the food industry
Free from silicone
yes
Electrical data
Operating voltage [V] 1 Mio.
torsional strain
± 180 °/m
Remarks
Pack quantity
1 pcs.

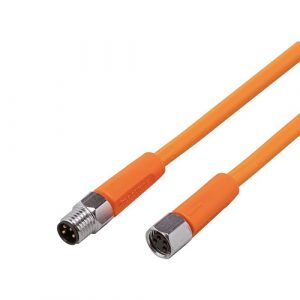

Electrical connection – plug
Connector: 1 x M8, straight; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.3…0.5 Nm
Electrical connection
Connection
Cable: 2 m, PVC, orange, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
Electrical connection – socket
Connector: 1 x M8, straight; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.3…0.5 Nm
