Application
Special feature
Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Application
hygienic and wet areas in the food industry
Free from silicone
yes
Electrical data
Operating voltage [V] 1 Mio.
torsional strain
± 180 °/m
Remarks
Pack quantity
1 pcs.

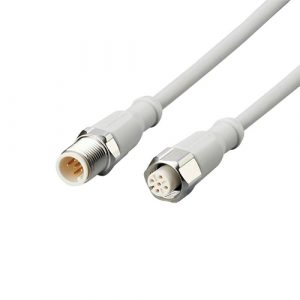

Electrical connection – plug
Connector: 1 x M12, straight; Moulded body: PP, Halogen-free; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6…1.2 Nm
Electrical connection
Connection
Cable: 0.6 m, MPPE, Halogen-free, grey, Ø 5.1 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm )
Electrical connection – socket
Connector: 1 x M12, straight; Moulded body: PP, Halogen-free; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6…1.5 Nm
