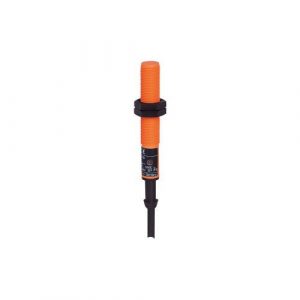

IF5865
Product characteristics
Electrical design
PNP
Output function
normally open
Sensing range [mm] 2
Housing
threaded type
Dimensions [mm] M12 x 1 / L = 71
Electrical data
Operating voltage [V] 10…36 DC
Current consumption [mA] 15; (24 V)
Protection class
II
Reverse polarity protection
yes
Outputs
Electrical design
PNP
Output function
normally open
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 250
Switching frequency DC [Hz] 800
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Sensing range [mm] 2
Real sensing range Sr [mm] 2 ± 10 %
Operating distance [mm] 0…1.6
Accuracy / deviations
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr] 1…15
Switch point drift [% of Sr] -10…10
Operating conditions
Ambient temperature [°C] -25…80
Protection
IP 67
Mechanical data
Weight [g] 87.3
Housing
threaded type
Mounting
flush mountable
Dimensions [mm] M12 x 1 / L = 71
Thread designation
M12 x 1
Materials
PBT
Displays / operating elements
Display
switching status
1 x LED, red
Accessories
Accessories (supplied)
lock nuts: 2
Remarks
Pack quantity
1 pcs.
Electrical connection
Connection
Cable: 2 m, PVC; 3 x 0.34 mm²
