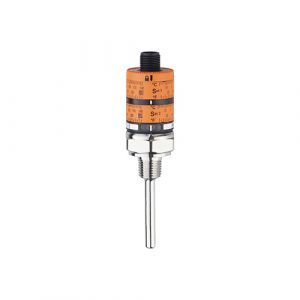

IFM TK7310
Product characteristics
Number of inputs and outputs
Number of digital outputs: 2
Measuring range
-25…140 °C
-13…284 °F
Process connection
threaded connection 1/4″ NPT
Installation length EL [mm] 50
Application
Special feature
Gold-plated contacts
Measuring element
1 x Pt 1000; (to DIN EN 60751, class A)
Media
liquids and gases
Medium temperature [°C] -40…145
Pressure rating [bar] 400
Electrical data
Operating voltage [V] 9.6…32 DC; (“supply class 2” to cULus)
Current consumption [mA]
