Technical data

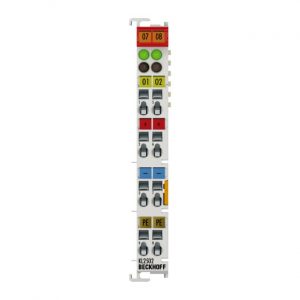

KL2502, KS2502
Number of outputs
2
Nominal voltage
24 V DC (-15 %/+20 %)
Load type
ohmic
Max. output current
0.1 A (1 A driver component) per channel
PWM clock frequency
1 Hz…20 kHz, 250 Hz default
Duty factor
0…100 % (TON > 750 ns, TOFF > 500 ns)
Resolution
max. 10 bit
Electrical isolation
500 V (K-bus/field potential)
Current consumption power contacts
typ. 10 mA + load
Current consumption K-bus
typ. 18 mA
Bit width in the process image
48 inputs/outputs: 2 x 16 bit data, 2 x 8 bit control/status
Configuration
no address setting, configuration via Bus Coupler or controller
Weight
approx. 50 g
Operating/storage temperature
0…+55 °C/-25…+85 °C
Relative humidity
95 %, no condensation
Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
IP 20/variable
Pluggable wiring
for all KSxxxx Bus Terminals
Approvals/markings
CE, UL, ATEX, IECEx, cFMus
Ex marking
ATEX: II 3 G Ex nA IIC T4 Gc IECEx: Ex nA IIC T4 Gc Ex tc IIIC T135 °C Dc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc
